It is generally accepted that revascularization of coronary lesions that exhibit reversible ischemia can relieve angina symptoms and improve patient outcomes. However, coronary angiography has certain limitations when used to identify ischemia-producing stenoses. The extent of anatomical stenosis of intermediate lesions often does not reflect functional severity [15]. It can be difficult to identify lesions causing ischemia in MVD patients. Although noninvasive stress imaging modalities can be useful, they have certain limitations when used in efforts to accurately identify ischemia-producing lesions [16]. By contrast, the FFR is a lesion-specific index measured using a pressure wire that rapidly determines functional significance by calculating the ratio of the distal coronary pressure to the aortic pressure that is simultaneously measured using a guiding catheter. An FFR ≤ 0.80 indicates myocardial ischemia with an accuracy > 90%. Therefore, the FFR should be used to guide coronary revascularization [6]. The Fractional Flow Reserve Versus Angiography for Multivessel Evaluation (FAME) trial compared angiography-guided PCI with FFR-guided PCI in MVD patients [17]. The 1-year rate of MACE including death, nonfatal MI, and repeat revascularization was significantly higher in the angiographic than FFR group (combined, 18.3% vs. 13.2%, p = 0.02; death, 1.8% vs. 3.0%, p = 0.19; MI, 5.7% vs. 8.7%, p = 0.07; repeat revascularization, 6.5% vs. 9.5%, p = 0.08). In addition, routine FFR significantly reduced both the mortality and MI rate at 2 years (combined, 8.4% vs. 12.9%, p = 0.02) [18] and 5 years (28% vs. 31%, p = 0.31), with no need for revascularization. However, the differences were not significant because of the small number of patients [19]. The FAME trial showed that FFR guidance was associated with a significantly lower incidence of MACE compared to angiographic guidance, without any significant increase in procedural time and a reduction in cost. In addition, it was found that routine FFR may minimize the need for PCI caused by an oculostenotic reflex. Subanalysis revealed that FFR-guided PCI in MVD patients was less costly than angiography-guided PCI and improved the quality of adjusted life-years measured 1 year later. Therefore, FFR-guided PCI is a rare example of a new technique that not only improves outcomes and patient quality-of-life, but also reduces costs [20]. However, further trials are necessary to validate the routine use of FFR in patients undergoing MV PCI.

Although the SS allows risk stratification and predicts the prognosis of MVD, it has the innate limitation of being angiographically based. Thus, the functional importance of a lesion may be underestimated or overestimated. Underestimation is associated with IR and an increased risk of adverse events. Overestimation reflects PCI of a functionally insignificant lesion, either affording no benefit or actually causing harm because revascularization is inadequate. To overcome these limitations, an additional functional evaluation (with an anatomical assessment) would help guide appropriate decision-making.

The functional SS (FSS) is recalculated SS that only evaluates ischemia-producing lesions as revealed by FFR. When applying the SS based on angiography to patients enrolled in the FAME trial, 32% of the higher risk SS group moved to the lower risk group. MACE developed in 8.4%, 10.2%, and 20.9% of the low-, medium-, and high-SS groups (p = 0.001); and in 9.0%, 11.3%, and 26.7% of the low-, medium-, and high-FSS groups, respectively (p < 0.001). Further, the FSS better predicted the 1-year clinical outcomes than the SS (Harrell’s C-values for the FSS, 0.677 vs. 0.630 for the SS, p = 0.02) [21]. The benefits afforded by the FSS are 2-fold. First, some patients at anatomically higher risk for MVD may be reclassified as being physiologically at lower risk, and thus can be appropriately treated via PCI. Second, physiology-based FSS is better than anatomy-based classic SS in terms of predicting outcomes after revascularization. Patients who moved from an anatomically higher risk group to a functionally lower risk group experienced outcomes similar to those of the anatomically lower risk group. However, patients who remained in a higher functional risk group experienced very poor outcomes after PCI, and thus should undergo a different form of revascularization such as CABG [22].

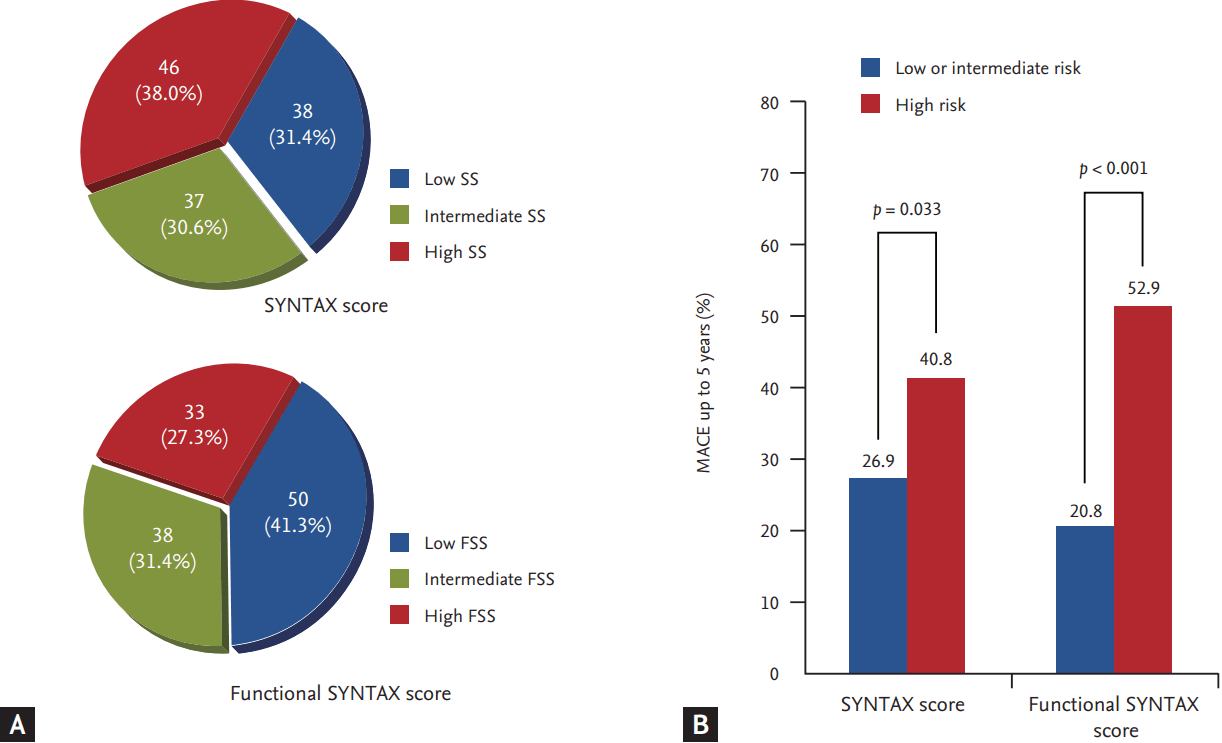

The FSS predicts not only short- but also long-term outcomes. We included 121 consecutive patients with MVD whose details are on the SYNTAX website, and calculated their SSs. The FFRs of angiographically ambiguous lesions were measured. FSSs were calculated by adding the scores of lesions with FFRs ≤ 0.80 and ignoring lesions with FFRs > 0.80. All of the patients were divided into MACE risk tertiles based on the SS, and MACE was followed up for 5 years. The SS range, mean ± standard deviation, and median were 3 to 34, 16.3 ± 6.8, and 16.0, respectively. The figures for the FSS were 0 to 34, 12.3 ± 8.1, and 11.0, respectively. The mean SS values were 8.6 ± 2.6, 15.6 ± 1.7, and 23.2 ± 4.2 in the low-, medium-, and high-SS groups, respectively (p < 0.001); whereas the mean FSS values were 5.0 ± 3.2, 12.7 ± 3.2, and 23.0 ± 4.1 in the low-, medium-, and high-FSS groups (p < 0.001). After determination of FSSs for all of the patients, 19.0% moved to a lower risk group. During 5 years of follow-up, the incidence of MACE in the high-SS group was significantly greater than that in the low- or intermediate-SS groups (26.9% vs. 40.8%, p = 0.033), as was also true of the FSS groups (20.8% vs. 52.9%, p < 0.001) (Fig. 1). Logistic regression analyses revealed that the FFS independently predicted long-term MACE (hazard ratio [HR], 3.025; 95% confidence interval [CI], 1.408 to 6.502; p = 0.005). The benefits afforded by the FSS reflect not only physiological assessment based on the FFR, but also careful evaluation of anatomical complexity (SS calculations). Therefore, a combination of anatomical and physiological evaluations overcome the limitations of each method, identifying appropriate treatment plans and predicting prognosis. However, the FSS does not reflect clinical complexity. Addition of clinical risk factors to the FSS will improve predictability.

IR is a surrogate marker of higher coronary complexity, greater clinical comorbidity, and more adverse outcomes after CABG or PCI to treat MVD. IR occurs more frequently after PCI, but is not rare after CABG. The effects of residual coronary stenosis after PCI or CABG vary; there is no universal definition of IR. In previous studies, IR was defined by reference to the severity of stenosis (e.g., 50% vs. 70%) or by reference to the diameter of the vessel requiring treatment (e.g., 1.5 to 2.5 mm). The residual SS (rSS) formally quantifies the extent and complexity of residual stenosis and can be calculated based on the level of obstructive coronary disease evident after PCI. When the rSS was assessed in patients of the ACUITY (Acute Catheterization and Urgent Intervention Triage strategY) trial, the measure was a strong independent predictor of ischemic outcomes and an rSS > 8 was associated with a poorer prognosis [23].

The residual functional SS (rFSS) is defined as the rSS measured only in vessels with FFRs ≤ 0.8 and is more discriminatory than anatomical or physiological assessment alone. When 385 patients who underwent 3V FFR measurements after stent implantation were followed up for 2 years, the rFSS was significantly associated with MACE (HR, 1.09; 95% CI, 1.02 to 1.17; p = 0.018). When clinical risk factors were added, the ability of the rFSS to predict MACE increased more (by 3.5%, p = 0.002) than the predictive abilities of the FSS, rSS, and rFSS [24]. Analysis of pooled data from the SYNTAX, PRECOMBAT (Premier of Randomized Comparison of Bypass Surgery versus Angioplasty Using Sirolimus-Eluting Stent in Patients with Left Main Coronary Artery Disease), and BEST trials revealed that PCI that achieved complete revascularization (CR) afforded a long-term survival duration similar to that after CABG with CR. However, PCI associated with IR was associated with a poor prognosis [25]. Although angiographic CR is associated with improved outcomes, CR is not always possible in MVD patients undergoing PCI. As treatment of angiographically significant but functionally insignificant lesions can be safely deferred, selective coronary revascularization guided by FFR measurements should be considered [26]. Therefore, when treating MVD, the treatment strategy chosen should seek to achieve functionally CR.

The use of FFR to assess the hemodynamic significance of nonculprit coronary artery lesions during the acute phase of MI enhances risk stratification and shortens hospital stay by reducing the need for additional tests detecting residual myocardial ischemia. If coronary microvascular dysfunction is present, maximal hyperemia may not be readily attained during FFR measurements; indeed, the FFR has not often been used to evaluate patients with acute MI, because the maximum attainable flow is less and the FFR gradient smaller in such patients. In other words, the FFR is not a reliable assessment of the severity of possibly culprit lesions under such circumstances. Only a few studies have evaluated the FFRs of infarct-related arteries in patients with ST segment elevation myocardial infarctions (STEMIs). One prior study found that the FFRs of STEMI patients undergoing primary PCI were higher than those of angina pectoris patients with the same extents of stenosis [27].

However, in patients with non-ST segment elevation myocardial infarctions (NSTEMIs), the extents of microvascular dysfunction and myocardial stunning may be less than in those with STEMIs. The FAMOUS-NSTEMI (fractional flow reserve versus angiography in guiding management to optimize outcomes in non-ST elevation myocardial infarction) trial assessed the outcomes of NSTEMI patients undergoing routine FFR-guided or angiography-guided management [28]. In the FFR-guided group, the proportion of patients initially treated medically was higher than that in the angiography-guided group (22.7% vs. 13.2%, p = 0.022) and the extent of revascularization at 12 months was lower (79.0% vs. 86.8%, p = 0.054), but no significant between-group difference in terms of either overall health outcomes or the quality-of-life was apparent. Although our present analysis supports the idea that FFR can be used to identify culprit lesions, the clinical events were too few in number to allow us to draw firm conclusions. Large-scale randomized trials with long-term follow-up are needed to assess the utility of FFR-guided management strategies in NSTEMI patients.

Several trials have focused on validation, and the clinical implications, of FFR guidance when non-infarct-associated arteries are to be treated in patients with MIs. Ntalianis et al. [29] measured FFR changes in nonculprit coronary artery lesions during the acute MI phase, and days and weeks later. The FFRs of nonculprit lesions did not change from the acute phase of MI to the 1-month follow-up (0.77 ± 0.13 vs. 0.77 ± 0.13, p = not significant). Therefore, FFR assessment of nonculprit lesions during the acute phase reliably assesses functional significance and usefully contributes to risk stratification. FFR-guided management of nonculprit lesions in patients with STEMIs was evaluated in the DANAMI-3-PRIMULTI (Primary PCI in Patients With ST-elevation Myocardial Infarction and Multivessel Disease: Treatment of Culprit Lesion Only or Complete Revascularization) trial, which only compared the clinical outcomes of patients who underwent FFR-guided CR during index admission in terms of revascularization of infarct-related arteries (IRAs) [30]. During 27 months of follow-up, the primary endpoints (death, MI, or ischemia-driven revascularization of non-IRAs) were attained less frequently in patients who underwent FFR-guided CR (13% vs. 22%, p = 0.004). The Compare-Acute trial randomized FFR-guided treatment of non-IRAs in an acute setting. Non-IRA revascularization was performed only after successful primary PCI of IRA [31]. During the 12 month follow-up, the primary endpoint (a composite of death, MI, revascularization, and cerebrovascular events) was attained by 7.8% of the FFR-guided CR group and 20.5% of the IRA revascularization-only group (p < 0.001). Although recent evidence has suggested that the FFRs of acute myocardial infarction (AMI) patients with MVD is of prognostic significance, any role for this parameter should be further evaluated in the FRAME-AMI study (FFR versus Angiography-Guided Strategy for Management of AMI with Multivessel Disease; ClinicalTrials.gov No. NCT02715518).
