Delayed Puberty due to Pituitary Stalk Dysgenesis and Ectopic Neurohypophysis

Article information

Korean J Intern Med. 2006;21(1):68-72
Publication date (electronic) : 2006 March 30
doi : https://doi.org/10.3904/kjim.2006.21.1.68
Department of Internal Medicine. Korea University College of Medicine, Seoul, Korea.
2Department of Diagnostic Radiology, Korea University College of Medicine, Seoul, Korea.
Correspondence to: Kyung Mook Choi, M.D., Division of Endocrinology and Metabolism, Department of Internal Medicine, Korea University Guro Hospital, 97 Gurodong-Gil, Guro-Gu, Seoul 152-703, Korea. Tel: 82-2-818-6646, Fax: 82-2-866-1643, medica7@korea.ac.kr
Received 2004 September 30; Accepted 2005 August 11.

Abstract

Hypopituitarism is not a common cause of delayed puberty. A 22 year old man was referred to our clinic because of the absence of the development of secondary sexual characteristics. The patient had no complaints of physical discomfort. Random serum testosterone and luteinizing hormone level were obtained and found to be low. The combined pituitary function stimulation test revealed a partial hypopituitarism. A pituitary magnetic resonance imaging (MRI) was obtained and showed decreased pituitary stalk enhancement and ectopic neurohypophysis. Therefore, we conclude that the delayed puberty was a result of hypopituitarism due to pituitary stalk dysgenesis and ectopic neurohypophysis. The patient was started on hormone replacement therapy and gradually developed secondary sexual characteristics.

INTRODUCTION

The etiology of delayed puberty is heterogeneous and includes: constitutional delay, hypogonadotropic states, hypergonadotropic states as well as chronic illness1). Hypopituitarism is not a common cause of delayed puberty2). The current approach to the diagnosis of hypothalamic hypophyseal lesions using a combined pituitary function stimulation test and pituitary MRI have improved detection and allowed for the diagnosis of hypopituitarism as a cause of delayed puberty2).

We report a case of a 22-year old man who presented with absent secondary sexual characteristics and was otherwise asymptomatic. Using a combined approach with the pituitary function stimulation test and pituitary MRI, we could identify the cause of delayed puberty to be hypopituitarism due to a pituitary structural abnormality, i.e., pituitary stalk dysgenesis and ectopic neurohypophysis. The patient was started on hormone replacement therapy and gradually developed secondary sexual characteristics.

CASE REPORT

A 22-year old man was referred to our clinic because of the absence of the development of secondary sexual characteristics. The past medical history was unremarkable there were no significant pregnancy or perinatal problems. The family history was negative for growth failure, pituitary or thyroid disease. During childhood, the patient reported that he had always been short for his age. However, after a delayed growth spurt, he began to grow steadily at 20 years of age. At the time of admission, he was 183 cm. He weighed 75 kg and his body mass index (BMI) was 22.4 kg/m2. He had normal intelligence and normal body proportions. His bone age was 15 years, which was slightly below expected. X-ray evaluation of both hands showed open epiphysis (Figure 1). Physical examination revealed a micropenis, no pubic or axillary hair and palpable though small testes (Figure 2). These findings were compatible with a Tanner stage I development. The patient had a high pitched voice and appeared young for his stated age. The patient denied physical discomfort, had no signs of gynecomastia, no signs of orthostatic hypotension, nor any symptoms that could be associated with hypothyroidism.

Figure 1

The standard radiograph of the left hand shows an opened epiphysis in the bones of the wrist and hand. Bone age was measured to be 15 years.

Figure 2

Physical examination revealed a micropenis, no pubic and axillary hair

The laboratory findings showed normal erythrocyte sediment rate, hematological parameters, blood glucose, serum sodium, potassium, calcium, phosphate, magnesium, and creatinine. Random testosterone (0.08 ng/mL, reference range 2.4~18.3 ng/mL) and luteinizing hormone (LH) (below 0.1 mLU/mL, reference range 0.4~5.7 mLU/mL) levels were all low; the follicle stimulating hormone (FSH) levels were within normal limits. The karyotype was normal, 46,XY. As a result of the random sexual hormone levels and karyotyping analysis, we could classify the delayed puberty as hypogonadotropic hypogonadism. Therefore, we performed a combined pituitary function stimulation test and pituitary MRI for further assessment. We injected regular insulin (0.1 u/Kg), TRH (200 ug), and LHRH (100 ug) and observed that 2 hours later the blood sugar fell to 60 with patient complaint of hypoglycemic symptoms. The combined pituitary function stimulation test showed no increase in serum LH, FSH, growth hormone (GH), adrenocorticotropin hormone (ACTH) level, and the serum levels of prolactin and thyroid stimulating hormone (TSH) showed a normal increment (Table 1). The MRI showed decreased pituitary stalk enhancement and an enhancing structure in the hypothalamic area, which appeared to be ectopic neurohypophysis (Figure 3A, 3B).

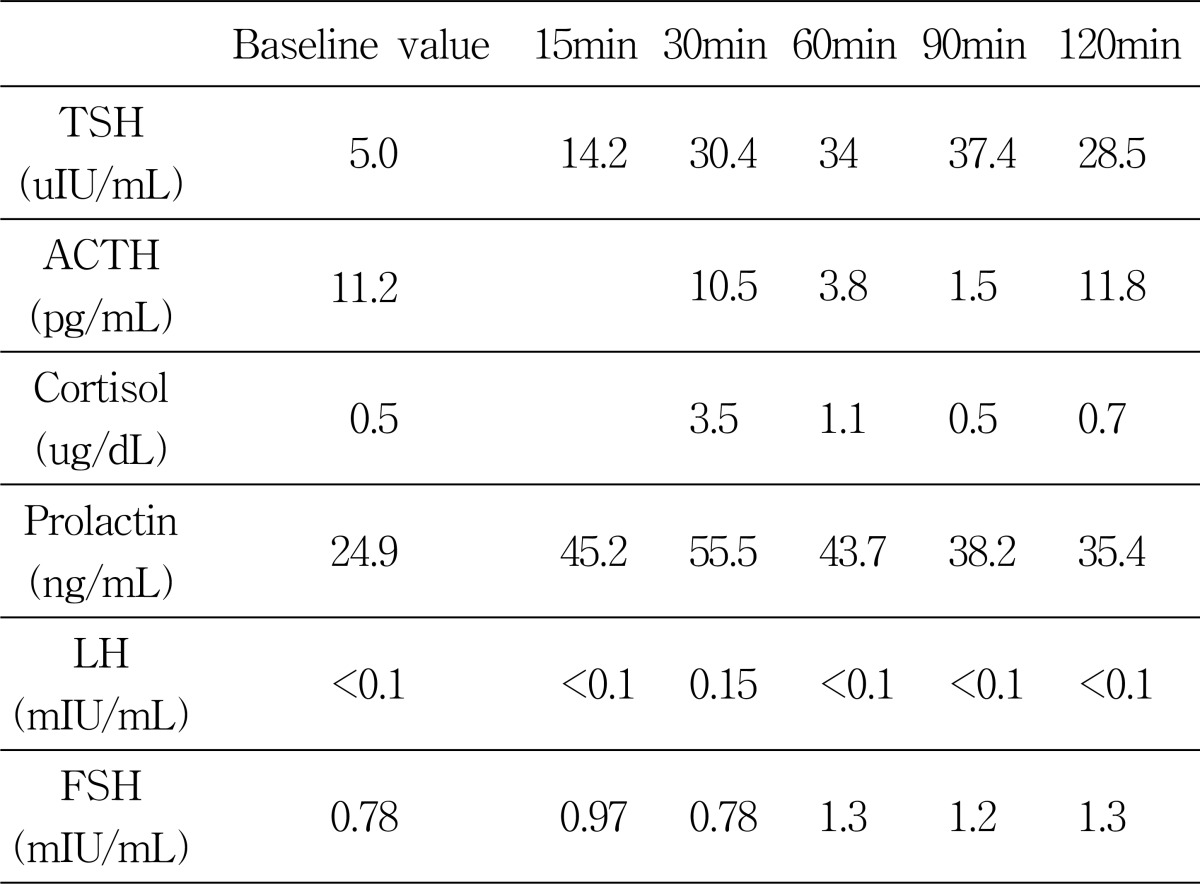

Table 1

Result of combined pituitary function stimulation test

Figure 3

Sagittal pre- (A) and serial thin-section post-contrast (B) T1-weighted MR scans were obtained. The precontrast study (A) shows a small pituitary fossa (blackstar), a near absent infundibular stalk (arrow) and a high signal focus (arrowhead) in the hypothalamus. Post-constrast images show (B) a strong and uniform enhancement in the hypothalamic area, likely caused by the ectopic posterior pituitary lobe (arrowhead) and near total absence of the infundibular stalk (arrow).

Therefore, considering the results of the above evaluation, the delayed puberty, in this 22 year old man, was the result of hypopituitarism due to pituitary stalk dysgenesis and ectopic neurohypophysis.

The patient was started on hormone replacement therapy with prednisolone 5 mg/day, levothyroxine 0.1 mg/day and testosterone 250 mg IM every 3 weeks. After 3 months of treatment, secondary sexual characteristics began to develop; pubic and axillary hair was noted and the voice changed to a lower pitch. The serum testosterone level, previously 0.08 ng/mL, increased to 0.57 ng/mL.

DISCUSSION

Delayed puberty is generally defined when puberty development is two standard deviations (SD) below the mean for a given population1, 3). Hypopituitarism is not a common cause of delayed puberty, but recently the incidence has increased due to improvement in diagnostic tools2). The clinical manifestations associated with hypopituitarism vary, depending on the severity of the pituitary hormone deficiency4, 5). Presentation of symptoms are variable and include: acute adrenal insufficiency and profound hypothyroidism, symptoms indicating a pituitary mass lesion; or the symptoms may be nonspecific such as: fatigue and delayed puberty, as reported in our case2, 4, 5). Therefore, hypopituitarism should be considered in all patients with abnormal development of secondary sexual characteristics even if they are otherwise asymptomatic.

In our case, the cause of delayed puberty was hypopituitarism due to pituitary dysgenesis. The pituitary gland develops as a result of a fusion of the adenohypophysis and neurohypophysis during the embryonic period. Incomplete downward migration of the neurohypophysis as a result of a genetic defect or a pituitary stalk injury, from perinatal trauma, may lead to fusion defects. Fusion defects are associated with anterior pituitary gland atrophy due to the lack of stimulation from the hypothalamus6). Craft et al. reported a high frequency of perinatal insults, such as breech delivery or neonatal hypoxemia, in children with idiopathic hypopituitarism9, 10). Fujisawa et al and Kikuchi et al. reported the findings of stalk transection and ectopic posterior pituitary at MRI in patients with hypopituitarism who had a history of perinatal insult; these findings suggested that the traumatic ischemic injury of the pituitary stalk or median eminence was the primary cause of the pituitary hormonal deficiencies7, 8). However, other studies propose a congenital cause for this form of pituitary abnormality. In these reports mutations in genes responsible for normal posterior pituitary lobe descent and stalk development are suggested to explain cases of hypopituitarism due to a pituitary structural abnormality11-15). To date, although there are possible candidates such as HESX116) and LHX4 genes17), the specific genetic abnormalities leading to pituitary stalk dysgenesis and posterior pituitary ectopia have not been identified. Future analysis is planned to examine other transcription factors and signaling molecules, important during pituitary embryogenesis, especially those involved in posterior pituitary ectopia and pituitary stalk dysgenesis.

In a high proportion of patients with non-familial idiopathic growth hormone deficiency (both isolated growth hormone defect and multiple pituitary hormone defect), characteristic radiographic findings include a) small to absent anterior pituitary gland b) small or absent pituitary stalk and c) ectopic posterior pituitary hyperintensity located at the base of the hypothalamus14).

If an enhancing structure in the hypothalamic area is identified, the diagnosis must distinguish an ectopic neurohypophysis from granulomatous disease and metastatic disease. The findings in our case suggested an ectopic neurohypophysis because of an enhancing structure that showed high signal intensity in both precontrast and postcontrast images. The presence of the neurosecretory granule containing arginine vasopressin neurophysin complex in the astrocytic glial cell can explain the high signal intensity of posterior pituitary lobe18).

In previously reported cases, many patients with an ectopic neurohypophysis had no posterior pituitary gland dysfunction. In 1996, Adamsbaum reported, in three thousand normal individuals, that the posterior pituitary gland was always located in a fixed site; however, in patients with growth hormone deficiency ectopic neurohypophysis was identified in 40~60%, and 60~80% of them had partial pituitary hormone deficiency but rarely diabetic insipidus19). This is because of the proliferation of axons and reorganization of the posterior pituitary lobe at the site above the cutting point of the pituitary stalk7). Our patient had no sign of diabetes insipidus and therefore we did not test for it with water deprivation.

Our patient had no history of abnormal gestation, breech presentation, and ischemic insult at birth. So we could assume that the structural pituitary abnormality of this 22-year old man might come from the result of congenital and genomic abnormality. However, we did no further evaluation at genomic level. The combined pituitary function testing was noted for no response for cortisol and growth hormone. However, the patient had no complaints suggestive of adrenal insufficiency and the height was within normal limits (183 cm). Extensive destruction of the pituitary gland, greater than 60~70 percent, is required for symptoms of pituitary insufficiency; when present these symptoms are diverse. As in our patient there may be no specific symptoms of steroid deficiency. However, with greater stress symptoms may become more apparent; this might occur as a result of infection or in association with a surgical procedure. Prior reports have shown that in spite of GH deficiency, due to pituitary stalk dysgenesis, height is within normal limits. D.T den Ouden et al explained such phenomenon by offering the following three hypotheses: First, because of the total absence of estradiol, the epiphyses do not close, and the patient continues to grow possibly due to other factors such as insulin. Insulin can act as a growth stimulus partially through activating the IGF-1 receptor. Second, the fact that estrogens have a slightly antagonistic effect on the bioactivity of GH could explain why, in the absence of estrogens, low GH secretion has a greater effect than expected. Last, a possible growth stimulus in patients with high prolactin (PRL) levels, in patients with low GH, which has been implicated in the pathophysiology of growth without GH in craniopharyngioma20).

In conclusion, there are many cases of partial hypopituitarism that go undiagnosed because they are asymptomatic, and only have absence of secondary sexual development. Therefore, it is important to consider the possibility of hypopituitarism, even in patients who present without other symptoms, as in our case. Furthermore, if hypopituitarism results from a structural pituitary abnormality, especially without a history of perinatal birth injury such as breech presentation, further evaluation is indicated at the molecular level to determine whether a genetic abnormality may explain the structural pituitary malformation, such as posterior pituitary ectopia and pituitary stalk dysgenesis.

References

1. Argente J. Diagnosis of late puberty. Horm Res 1999;51(Suppl 3):95–100. 10592450.
2. Kim JY, Yoon SJ, Kim SK, Hong SB, Kim YJ, Nam MS, Kim MR, Shin SP, Kim YS. A case of delayed puberty due to hypoplasia of anterior pituitary gland with pituitary stalk agenesis and ectopic neurohpophysis. J Korean Soc Endocrinol 1999;14:578–586.
3. Sedlmeyer IL, Palmert MR. Delayed puberty: analysis of a large case series from can academic center. J Clin Endocrinol Metab 2002;87:1613–1620. 11932291.
4. Vance ML. Hypopituitarism. N Engl J Med 1994;330:1651–1662. 8043090.
5. Park HK, Kim SW, Kim SK, Jeon JS, Kim HK, Shin CS, Park KS, Kim SY, Cho BY, Lee HK, Koh CS. A clinical study on hypopituitarism. J Korean Soc Endocrinol 1996;11:268–275.
6. Fujisawa I. Pathogenesis of an ectopic posterior lobe in patients of short stature with growth hormone deficiency. AJNR Am J Neuroradiol 1998;19:193–195. 9432184.
7. Fujisawa I, Kikuchi K, Nishmaura K, Togashi K, Itoh K, Noma S, Minami S, Sagoh T, Hiraoka T, Momoi T. Transection of the pituitary of the pituitary stalk: development of an ectopic posterior lobe assessed with MR imaging. Radiology 1987;165:487–489. 3659371.
8. Kikuchi K, Fujisawa I, Momoi T, Yamanaka C, Kaji M, Nakano Y, Konishi J, Mikawa H, Sudo M. Hypothalamic pituitary function in growth hormone-deficient patients with pituitary stalk transaction. J Clin Endocrinol Metab 1988;67:817–823. 3138279.
9. Osorio MG, Marui S, Jorge AA, Latronico AC, Lo LS, Leite CC, Estefan V, Mendonca BB, Amhold IJ. Pituitary magnetic resonanceimaging and function in patients with growth hormone deficiency with and without mutation in mutations in GHRH-R, GH-1 or PROP-1 genes. J Clin Endocrinol Metab 2002;87:5076–5084. 12414875.
10. Craft WH, Underwood LE, van Wyk JJ. High incidence of perinatal insult in children with idiopathic hypopituitarism. J Pediatr 1980;96:397–402. 7359232.
11. Pinto G, Netchine I, Sorbriere ML, Brunelle F, Souberbielle JC, Brauner R. Pituitrary stalk interruption syndrome: a clinical-biological-genetic assessment of its pathogenesis. J Clin Endocrinol Metab 1997;82:3450–3454. 9329385.
12. Chen S, Leger J, Garel C, Hassan M, Czernichow P. Growth hormone deficiency with ectopic neurohypophysis: anatomical variations and relationship between the visibility of the pituitary stalk asserted by magnetic resonance imagind and anterior pituitary function. J Clin Endocrinol Metab 1999;84:2408–2413. 10404812.
13. Nagel BH, Palmbach M, Petersen D, Ranke MB. Magnetic resonance images of 91 children with different causes of short stature: pituitary size reflects growth hormone secretion. Eur J Pediatr 1997;156:758–763. 9365063.
14. Hamilton J, Chitayat D, Blaser S, Cohen LE, Phillips JA 3rd, Daneman D. Familial gowth hormone deficiency associated with MRI abnormalities. Am J Med Genet 1998;80:128–132. 9805128.
15. Maghnie M, Larizza D, Truilzi F, Sampaolo P, Scotti G, Severi F. Hypopituitarism and stalk agenesis: a congenital syndrome worsened by breech delivery? Horm Res 1991;35:104–108. 1806462.
16. Thomas PQ, Dattani MT, Brickman JM, McNay D, Warne G, Zacharin M, Cameron F, Hurst J, Woods K, Dunge D, Stanhope R, Forrest S, Robinson IC, Beddington RS. Heterozygous HESX1 mutation associate with isolated congenital pituitary hypoplasia and septo-optic dysplasia. Hum Mol Genet 2001;10:39–45. 11136712.
17. Machinis K, Pantel J, Netchine I, Leger J, Camand OJ, Sobrier ML, Dastot-Le Moal E, Duquesnoy P, Abitbol M, Czemichow P, Amselem S. Syndrome short stature in patient with a germline mutation in the LIM homeobox LHX4. Am J Hum Genet 2001;69:961–968. 11567216.
18. Fujisawa I, Asato R, Kawata M, Sano Y, Nakao K, Yamada T, Imura H, Naito Y, Hoshino K, Noma S. Hyperintense signal of the posterior pituitary on T1-weighted MR images: an experimental study. J Comput Assist Tomogr 1989;13:371–377. 2723165.
19. Adamsbaum C, Chaussain JL. Diagnostic strategies in pediatric imaging. Horm Res 1996;46:165–169. 8950615.
20. Den Ouden DT, Kroon M, Hoogland PH, Geelhoed-Duijvestijn PH, Wit JM. A 43-year-old male with untreated panhypopituitarism due to absence of the pituitary stalk from dwarf to giant. J Clin Endocrinol Metab 2002;87:5430–5434. 12466332.

Article information Continued

Figure 1

The standard radiograph of the left hand shows an opened epiphysis in the bones of the wrist and hand. Bone age was measured to be 15 years.

Figure 2

Physical examination revealed a micropenis, no pubic and axillary hair

Figure 3

Sagittal pre- (A) and serial thin-section post-contrast (B) T1-weighted MR scans were obtained. The precontrast study (A) shows a small pituitary fossa (blackstar), a near absent infundibular stalk (arrow) and a high signal focus (arrowhead) in the hypothalamus. Post-constrast images show (B) a strong and uniform enhancement in the hypothalamic area, likely caused by the ectopic posterior pituitary lobe (arrowhead) and near total absence of the infundibular stalk (arrow).

Table 1

Result of combined pituitary function stimulation test

Table 1

TSH, thyroid stimulating hormone; ACTH, adenocorticotropin hormone; LH, luteinizing hormone; FSH, follicle stimulating hormone

※We injected regular insulin (0.1 u/Kg), TRH (200 ug), LHRH (100 ug) and 2hrs later the blood sugar fell to 60 and the patient complained of hypoglycemic symptoms.
