Korean J Intern Med > Volume 41(5); 2026 > Article
Kwon: Blocked premature atrial contractions mimicking severe sinus bradycardia
A 70-year-old man presented to the emergency department with dizziness and dyspnea for 2 days. His blood pressure was 96/55 mmHg and heart rate was 31 beats per minute (bpm). He had previously undergone two radiofrequency catheter ablations for paroxysmal atrial fibrillation 4 and 6 years earlier and had remained asymptomatic without anti-arrhythmic therapy.
A 12-lead electrocardiogram (ECG) showed marked bradycardia with a ventricular rate of 32 bpm (Fig. 1A). The tracing initially suggested sinus bradycardia. However, careful review of the ECG revealed small deflections embedded in the terminal portion of each T wave, consistent with premature atrial contractions (PACs) (Fig. 1B). These PACs occurred in a bigeminal pattern with a coupling interval of approximately 600 ms and were not conducted to the ventricle because they fell within the effective refractory period of the atrioventricular (AV) node. The blocked PACs reset the sinus node, resulting in pauses and a markedly reduced ventricular rate.
Thus, the symptomatic bradycardia was not caused by intrinsic sinus node dysfunction or AV conduction disease but by non-conducted PACs. An electrophysiologic study with three-dimensional mapping (CARTO3) was performed. Multiple PAC foci were identified in the left atrium and right atrium, and radiofrequency catheter ablation was performed (Fig. 2A). After elimination of the PACs, normal sinus rhythm with 1:1 AV conduction was restored (Fig. 2B). The patient’s symptoms resolved completely, and he was discharged without the need for pacemaker implantation.
Blocked PACs are an uncommon but reversible cause of symptomatic bradycardia and can be effectively treated with catheter ablation [1]. Recognition of this mechanism is essential to avoid unnecessary pacemaker implantation.

Notes

Conflicts of interest
The author discloses no conflicts.
Funding
None

Figure 1

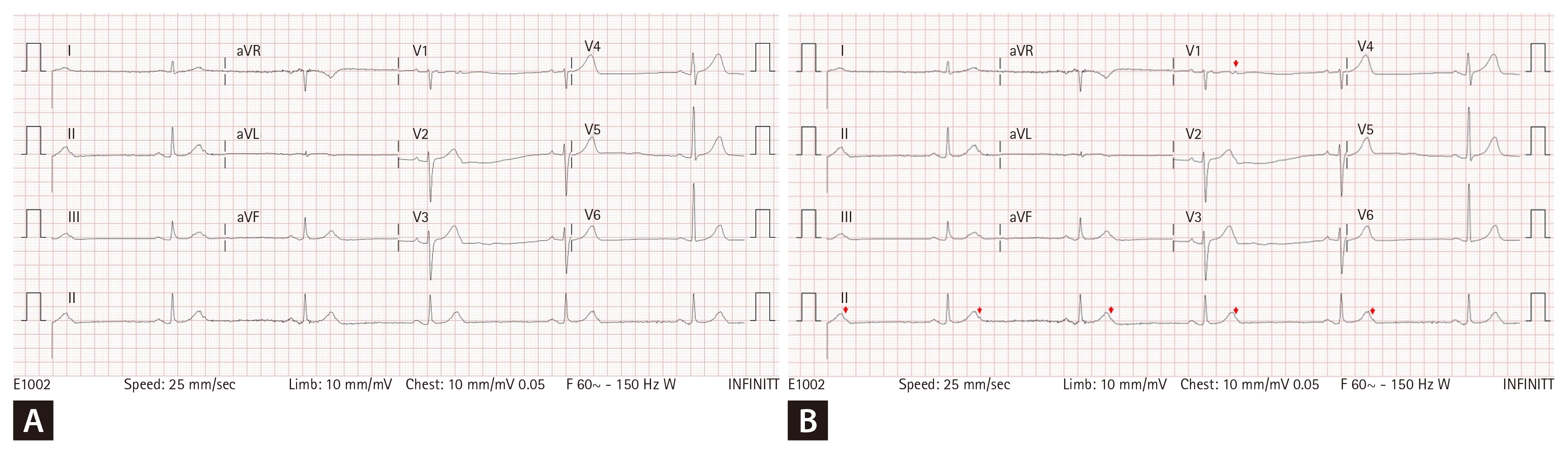

Twelve-lead electrocardiogram at presentation. (A) The tracing appears to show marked sinus bradycardia with 1:1 atrioventricular conduction. (B) Careful inspection reveals a non-conducted premature atrial contraction concealed within the terminal portion of the T wave (red arrow).
Figure 2

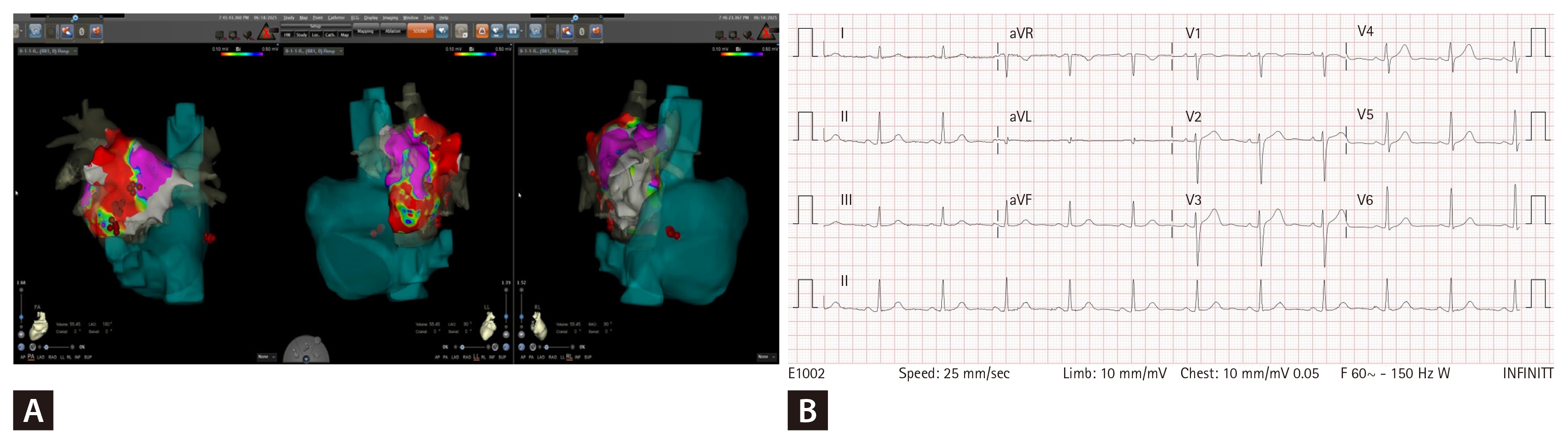

Catheter ablation of premature atrial contractions. (A) Three-dimensional electroanatomical mapping (CARTO3) demonstrating successful ablation sites (red dots) located in the posterior wall and left lateral wall of the left atrium, anterior ridge of the left pulmonary vein, and lateral wall of the right atrium (left, middle, and right panels, respectively). (B) After successful ablation, sinus rhythm with 1:1 atrioventricular conduction was restored.

REFERENCE

1. Lee CH, Gerstenfeld EP. An uncommon cause of bradycardia treated with catheter ablation. JAMA Intern Med 2026;186:124–125.
